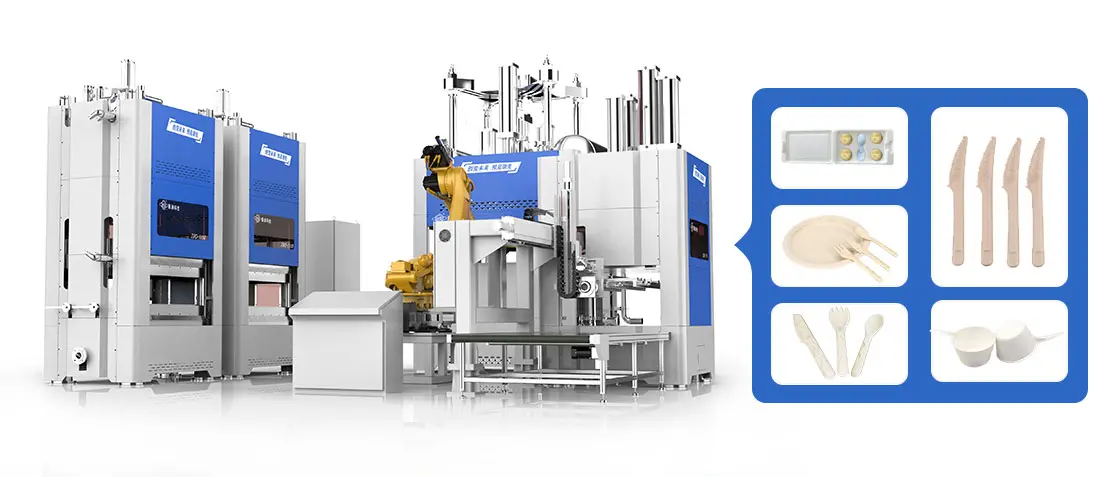

Cultery machine ZBC 1110

The ZBC1110 Finery tableware machine–the perfect solution for flexible,precise and stable production operations to produce diverse tableware.This cutting-edge automated equipment is designed to help you reduce costs and maximize production efficiency,while providing the highest quality cutlery on the market.With its high productivity, stable toggle structure, high pressure and extremely low failure rate, ZBC1110 can produce a variety of tableware products with high thickness requirements at high speed, including paper knives, bagasse spoons, bagasse forks, bagasse knives, milk powder spoon, chocolate holder, chocolate tray and Chinese soup spoon. The maximum product height it can produce is 100 mm,meaning you can easily create taller,more complex designs.One of the key advantages of the ZBC1110 is its smart robot,which intelligently connects various processes to streamline your production operations.This helps eliminate human error, reduces downtime and optimizes your production line to deliver consistent and reliable results.Another advantage of this automated equipment is its low energy consumption,which allows you to save production costs while maintaining high quality standards.Whether you are a small business owner or a large corporation,having the ZBC1110 can help you stay competitive in todays market.For example,if you produce pulp molded spoons,the ZBC1110 is the perfect choice.These spoons are water and oil resistant.Plus,theyre durable,strong,and rigid enough to withstand the rigors of everyday use.With the ZBC1110,you can make over 300,000 pieces Chinese soup spoon per day,making it a cost-effective choice for your business.

Advantages of Hanson Technology

Higher output , less consumption, wide application, perfect product quality

含水量下降更新后的
6 0 %
Wet product moisture
产能上升更新后的
3 0 %+
Capacity Up by
热能耗下降更新后的
3 0 %-
Consumption Less by
赃物下降更新后的
7 0 %-
Dirt Less by
Commonly Used Raw Material
Primary Pulp Board from the following plants
The commercial primary pulp board for producing disposable tableware is usually chemical pulp or chlorine-free ECF pulp ,can be purchased from paper making manufacture. One-year plant fiber is the proven more proper raw material for pulp molded tableware production for the fiber length is shorter,like sugarcane bagasse fiber,bamboo fiber,wheat straw fiber,reed straw fiber or some offcut of office paper.Wood fiber or bamboo fiber would be added by certain ratio for producing some products of complex structure or deeper products.

Application

Paper cultery /Bagasse Spoon/Bagasse Fork/Bagasse Knife/Milk Powder Spoon/Chocolate Tray/Chinese Soup Spoon

Parameter

ZBC1110 Finery tableware machine

1

Outer dimension (L*W*H)

7500mm*7200mm*4800mm

2

Platen size

1100mm*1000mm

3

Forming method

reciprocating

4

Pulp feeding style

accurate quantitative pulp feeding (external overflow style)

5

Equipment weight

29.7T

6

Product transfer method

transfer by 6 axis robot

7

Forming pressure

72T

8

Hot pressing pressure

120T

9

Equipment weight

29.7T

10

Machine drive mode

Digital booster cylinder+screw+servo

11

Transmission power

44kw

12

Drying method

dry in-mold

13

Capacity

1000-1500KG/22H

14

Cycle time

22-40 seconds/drop (depends on the product)

15

Max. product height

100mm

Production Flowchart

ONE-STOP SOLUTION ,TURNKEY PROJECT
播放视频

Finery Tableware Machine

Hanson pulp molding thermoforming technology make breakthrough of industrial bottleneck, based on specific product, the wet product moisture can be less than 60%, elctricity heating consumption(heating only) can be less than 1800kwh/ton finish product
